ASME B16.9 Carbon Steel Bend Dsaw Sch40 90 Degree 5D Black Pipe Fitting
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Size: | 1/2" - 24" | Name: | Bend |
|---|---|---|---|
| Color: | Black , Transparent, As Per Client's Requirment | Thickness: | SCH40 ,SCH80 ,STD ,SGP |
| Surface: | Customers't Requirement,PE Coated,Black Painted | Standard: | ASTM A234, ANSI B16.9, JIS, DIN |
| Connection: | Welding | Usage: | Joining Pipe Lines |
| Customized Support: | OEM, ODM, OBM | Application: | Pipe Lines Connect |
| Packing: | Wooden Pallet | Certification: | ISO |
| Head Code: | Round | Place Of Origin: | Hebei, China |
| High Light: | 24 inch carbon steel bend,sch80 carbon steel bend |
||
Product Description
ASTM A234 WPB Carbon Steel 90 Degree 3D Bend Sfenry ASME B16.49 Seamless Welding Equal
We are PED Approved Carbon Steel Welded Pipe Bend Manufacturer this product is better suited for the applications that require much welding where the Carbon Steel Pipe Elbow is readily made to fit in with pipes. The difference between the elbows and the bends is the curvature. The bends curve gradually, whereas the elbows usually make a sudden change of direction.
Products Description:
| Material | carbon steel, stainless steel, alloy steel |
| Technique | welded, bending,forged,exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 72''/DN15-DN3600 |
| Angles | elbows,bend,tee,cross,reducers,cap,pipe, flanges,socket steel fittings,nipple |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS,BS,GB we can also produce according to drawing |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Min Order Quantity | According to customer's requirement |
| Types | 45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | API CCS ISO BV NB ASME |
|
Special design available as requirement |
|

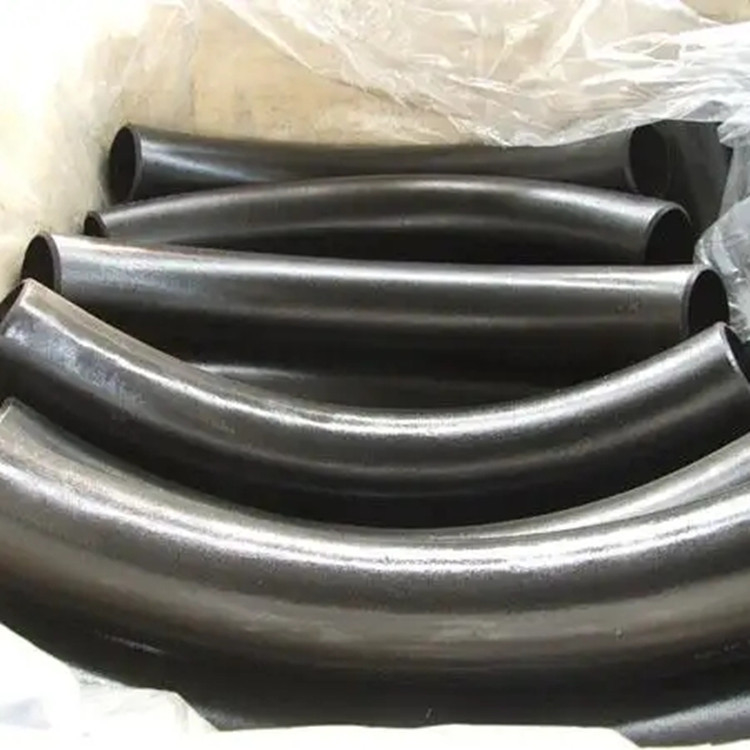

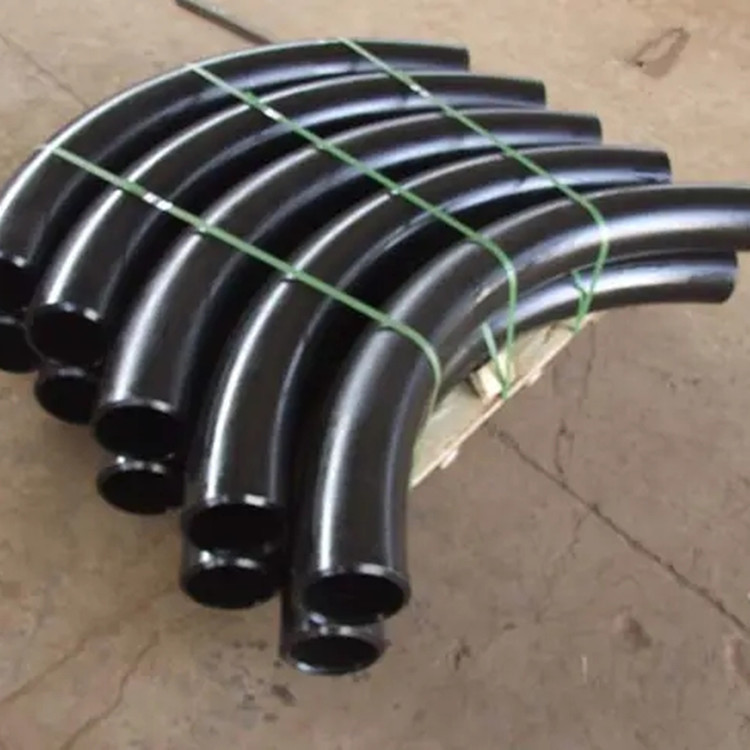

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
