ASME B16.9 Carbon Steel Bend Dsaw Sch40 90 Degree 5D Black Pipe Fitting
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 piece | Price : | 0.15$ |
|---|---|---|---|
| Packaging Details : | Wooden box Wooden pallet | Delivery Time : | 10 Work Days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10000 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 CE | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Color: | Black Rust-proof | Standard: | ASTM |
|---|---|---|---|
| Name: | 5D Bend | Surface: | Sand Blasting Black Oil |
| Degree: | 90/ 180/45 | Technics: | Hot Pushing |
| Size: | 8" | Material: | Carbon Steel |
| Country Of Origin: | China | Port: | Tianjin |
| Certificate: | ISO BV | Bend Angle: | 1.5D 3D 4D 5D |
| High Light: | ERW 5D Black 45 Degree Pipe Bend,A234 5D Black 45 Degree Pipe Bend,5D Black 45 Degree Pipe Bend |
||
Product Description
Erw Bend 3 D 5 D Lsaw Black A234 Wpb Carbons Steel Pipe Bend Asme 45 Degree
Pipe fitting bend is a bending pipe that used to change the pipeline direction. It is similar to pipe fitting elbow, but differently pipe fitting bend is longer than elbow and usually manufactured for the specific needs.
So depends on different bending radius (R) to distinguish bend and elbow.
In case bending radius is more than 2 times of D (diameter), it is pipe fitting bend.
In case bending radius in 1D or 2D, it is elbow. (short radius elbow and long radius elbow).
Pipe Bending Radius: 3D, 5D, 6D, 8D and customized
Bending Degrees: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
3D, 5D Pipe Bend - Common Use pipe fitting bend in Pipelines
3D and 5D pipe fitting bends are most common use in long pipelines, since they provide better efficiency in changing directions. After that is 6D and 8D pipe fitting bend, as the compensation to complete for small degree change.
Large Diameter Pipe Bend / Bending
Pipe fitting bend usually required in large diameter in oil and gas pipelines, since it has better capacity to transport the material, and long pipelines will need different radius of pipe fitting bend to be intalled in complex conditions.
Products Description:
| O.D. | Seamless: From 1/2" up to 24" DN15-DN600 Welded: From 26" up to 80" DN650-DN2000 |
| W.T. | Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS |
| Bending Radius (R) | R=3D 4D 5D 6D 7D 8D 9D 10D. |
| Bending angle (θ ) | 15o 30o 45o 60o 90o 135o180o, and also could manufacture according to the angles given by the clients. |
| Straight Length (L) | The length between two ends general from 300mm-1500mm, and also can produce according to the clients' requirement to product. |
| Material | A234-WPB, A420-WPl6, A234-WP11, A234-WP5, A403-WP304, A403-WP304L, A403-WP316, A403-WP316L, SS304, SS304L, SS316, SS316L. |
| Application Standard | ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391 |
| Forming | Hot formed, cold drawn |
| Type | Seamless and Welded, LR & SR |
| End | Bevel, plain, thread, socket |
| Surface Treatment | 1) Sandblasting 2) Paint black lacquer or transparent oil on surface to prevent corrosion |
| Application | Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform. |
| Packing | 1) Seaworthy wooden box for fittings with size from 1/2" ~ 14" 2) Seaworthy wooden pallet for fittings with size above 14" 3) According to the packing requirement of clients |
| Weight | Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend) |
| MOQ | 10 piece |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |
| Delivery time | 15~30 days after receipt of advanced payment |

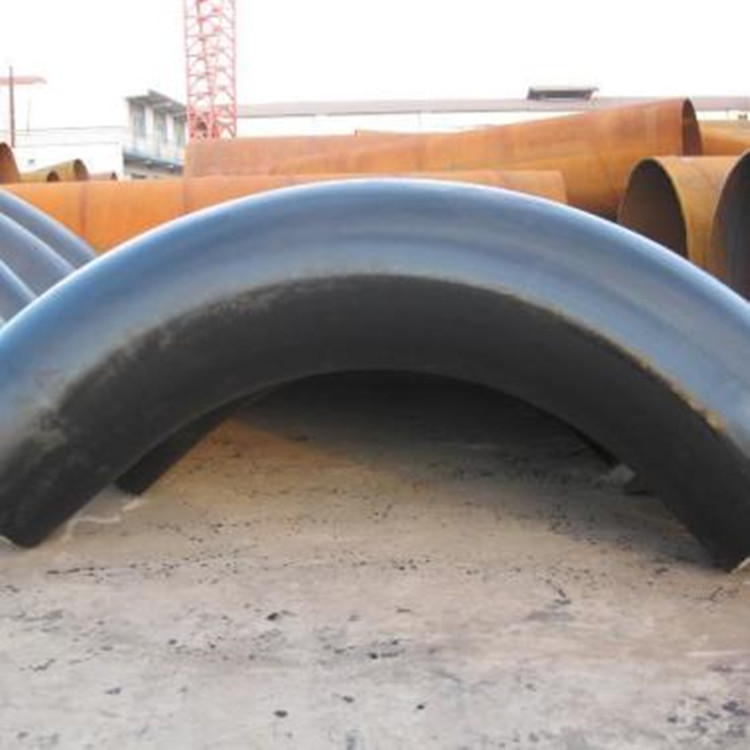

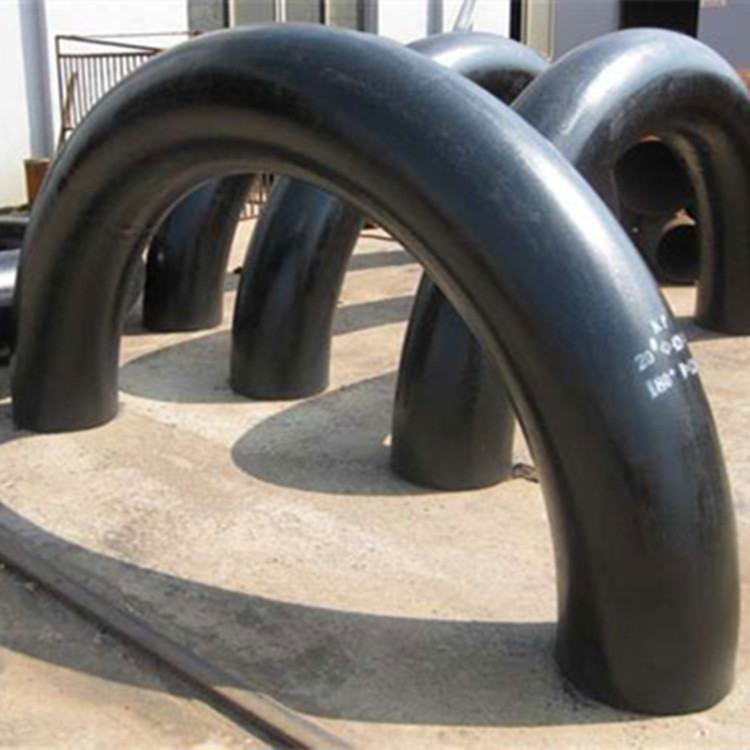

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
Q: Are you trading company or manufacturer ?
A: We are directly pipe fitting factory founded in 2001, which has much longer history than other fellow suppliers. Our factory certified by ISO, EN
API, capable of producing various kind of steel pipe fittings.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: I haven't done business with you guys before,how can I trust your company?
A: Our company established in 2006, we do pipe&fitting exporting work more than 15 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, API, Alibaba onsite check certificate.
Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or
you just need one piece, we would be very likely to make the MOQ as 1 piece for you.
