Butt Welded Carbon Steel Cap ASTM Seamless A234 WPB Cap Black
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Name: | Cap | Standard: | DIN, ANSI, GB, JIS, BSW |
|---|---|---|---|
| Origin: | China | Transport Package: | Pallet, Wooden Case |
| Certificate: | ASME CE SGS GB | Shape: | Elliptical |
| Head Type: | Round | Connection: | Welding |
| Material: | Carbon Steel, Carbon Steel/Stainless Steel | Model NO: | 1/2"-72" Sch10-Sch160 |
| Certification: | ISO, API, ANSI, DIN, JIS, ASME, GB, BS, CE | Surface: | Blasted |
| Application: | Buliding | Specification: | API, ISO |
| High Light: | DN1200 Flange End Cap,Butt Weld Flange End Cap,DN1200 Carbon Steel Cap |
||
Product Description

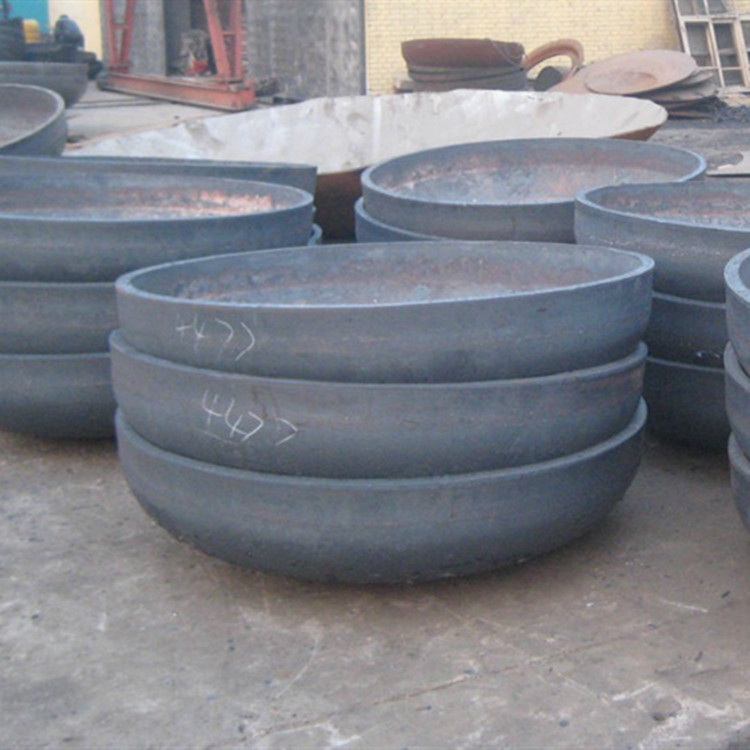

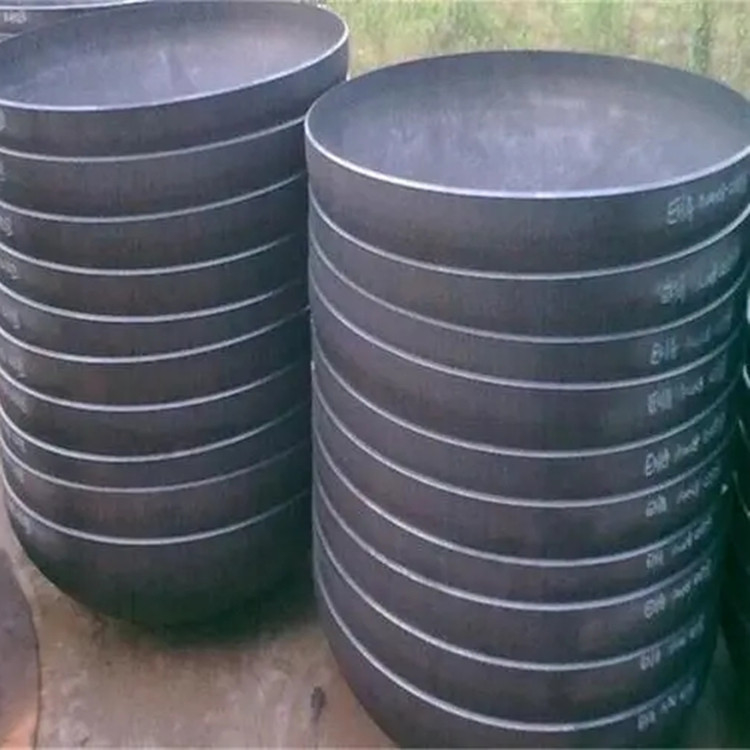

48" DN1200 Class150 300 Carbon Steel ASME B16.9 Butt Weld Flange End Cap
Chinese Factory Customized ASTM B16.9 A234 Carbon Steel Pipe Cap
Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end or mounted on the external thread of the pipe end to cover the pipe fittings. To close the pipeline so the function is the same as the pipe plug.
(You can also to use a blind plate to close the pipeline, differently the blind plate is detachable and the welded steel cap is not removable. The cap includes a convex cap, a conical shell, a variable diameter section, a flat cover and a constricted opening.)
The convex cap have several shapes: a hemispherical cap, an elliptical cap, a dish cap, and a spherical cap. From the point of view of force, the hemispherical cap is gradually not good to manufacture, but it is gradually manufactured from the viewpoint of manufacturing difficulty.
Products Description:
| Material | A234 WPB A105 A283-D A135-A A53-A A106-A A179-C A214-C A192 A226 A315-B A53-B A106-B A106-C A178-C A210-A-1 A210-C |
| Size | Size 1/4" to 48" Outside Diameter 13.7 mm to 1219 mm |
| Standard | ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981 |
| Certificates | API5L, ISO 9001:2008,SGS, BV,CCIC |
| Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS |
| Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings |
| packing | wooden case & pallet |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test. |
| Application | liquid delivery; Structure pipe; High and low pressure Boiler tube;Seamless steel tubes for petroleum cracking; oil pipe; gas pipe. |
| Advantages | 1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
