DN600 High Pressure Pipe Fittings Carbon Steel Sch 160 ASTM ISO 9001
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Standard: | SCH40,SCH20 | Packing: | Wooden Case |
|---|---|---|---|
| Name: | Carbon Steel Concentric Reducing Head Reducer | Size: | 1/2' ~ 8' |
| Type: | Concentric, Eccentric | End: | Bevel End ANSI B16.25 |
| Wall Thickness: | SCH20-SCH XXS | Shape: | Reducing |
| Technics: | Casting | Working Pressure: | 0.6 Mpa ~2.5 Mpa |
| High Light: | concentric reducer high pressure pipe fittings,sch20 carbon steel concentric reducer,8inch carbon steel concentric reducer |
||
Product Description
Factory Direct Price Pipe Fittings High Pressure Concentric Reducer
The size head (reducing pipe) is a pipe fitting used for the diameter of the pipe. The commonly used forming process is reducing diameter pressing, expanding diameter pressing or reducing diameter plus expanding diameter pressing, and stamping forming can also be used for reducing diameter pipes of certain specifications.
Products Description:
| Material | CARBON STEEL /ALLOY STEEL A335 P91 P22 P11 |
| Size | Size 1/4" to 64" Outside Diameter 13.7 mm to 1620 mm |
| Standard | ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981 |
| Certificates | API5L, ISO 9001:2008,CCIC |
| Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS |
| Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings |
| Marking | wooden case & pallet |
| Pipe Ends | Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) |
| Pipe Length | 1. Single Random Length and double Random Length.2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m) |
| Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases. |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test. |
| Application | liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe. |
| Advantages | 1.Reasonable price with excellent quality2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |

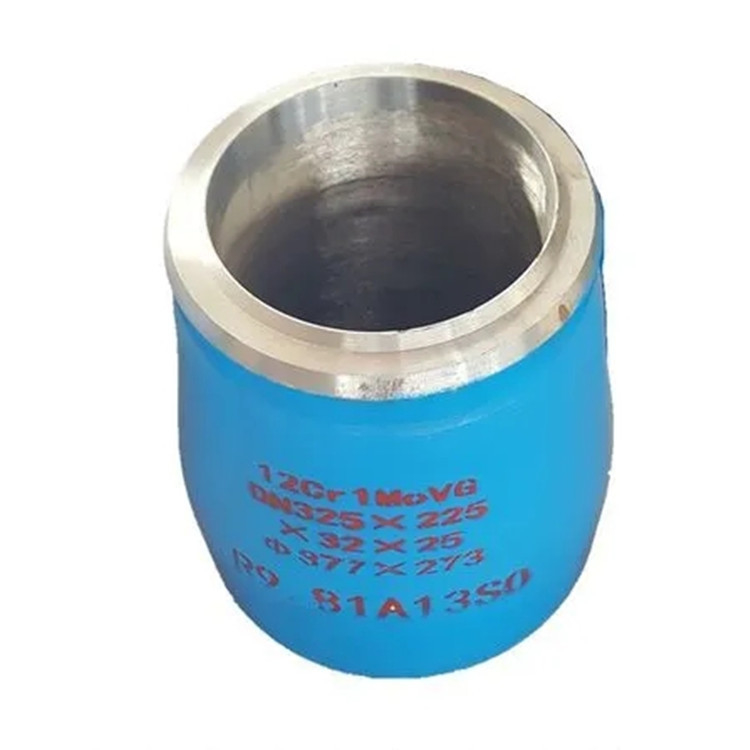

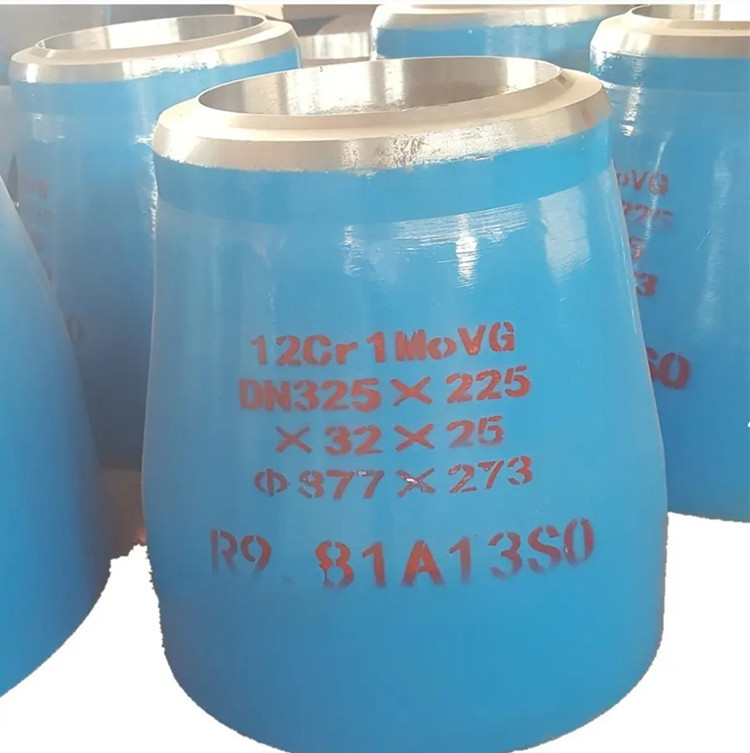

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
