High Standard Din Carbon Steel Pipe Flanges For Pressure Gauge

Contact Now

High Standard Din Carbon Steel Pipe Flanges For Pressure Gauge

Minimum Order Quantity :	1 piece	Price :	Can Be Negotioble
Packaging Details :	wooden box/ wooden pallets	Delivery Time :	10
Payment Terms :	L/C, T/T, D/P	Supply Ability :	10000

Place of Origin:	CHINA	Brand Name:	YI Sheng
Certification:	ISO 9001 BV	Model Number:	1/2"-72"

Detail Information
Produce Name:	High Standard Flange	Place Of Origin:	China
Standard:	ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc.	Pressure:	Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K
Packaging Details:	Wooden Box, Pallet Or According To Customer Requirements
High Light:	standard din carbon steel pipe flanges , pressure gauge carbon steel pipe flanges , din carbon steel socket weld flange

Product Description

High Standard Din Flange Pipes Connected Flanges Used For Pressure Gauge

Flange Type

Slip-on Flange / Blind Flange/ Reducing Flange / Welding Neck Flange / Orifice Flange / Lap Joint Flange /

Threaded Flange / Socket Flange

Grade	Cr	Ni	Cu	W	Si	Mn	Mo	N	P Max	S Max	C Max	Fe
S32760	25.5	6.4	3.5	0.75	1.00	1.00	3.5	0.25	0.030	0.010	0.030	Bal

Products Description:

FlangeType	Steel Flange, Alloy Steel Flange, Alloy 625, Alloy 690, Alloy 718
Standard	ASME/ANSI B16.5
Size	1/2’’~60’’
Pressure Rate	150lb to 2500lb
Manufacturing process	Push, Press, Forge, Cast, etc.
Material	Inconel Alloy Steel Flange
Carbon steel	ASTM A 105
Allloy steel flange	ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange	ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H
Manufacture Standard	ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN :DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ	1pcs
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FCA Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.

Mechanical Properties

Grade	UTS N/mm2(min)	0.20% Proolf(min)	Elong%(min)	Hardness HB (max)	PREN
S32760	750	550	25	270	40

Related Material

Material

Carbon steel(ASTM A105,A350LF2,A350LF3,)

Stainless steel(ASTM A182 F304, F304L,F316,F316L,F321,

F347,F310F44F51,A276 S31803, A182,

F43, A276 S32750,A705 631,632,A961, A484,

Alloy steel(ASTM A694 F42,F46,F52,F56,F60,F65,F70, A182

T91 (P91)

F12,F11,F22,F5,F9,F91,F1ECT)

Standard

DIN,EN,ASTM,BS,JIS,GB,ASME(ASME16.9/16.20)

Application

Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

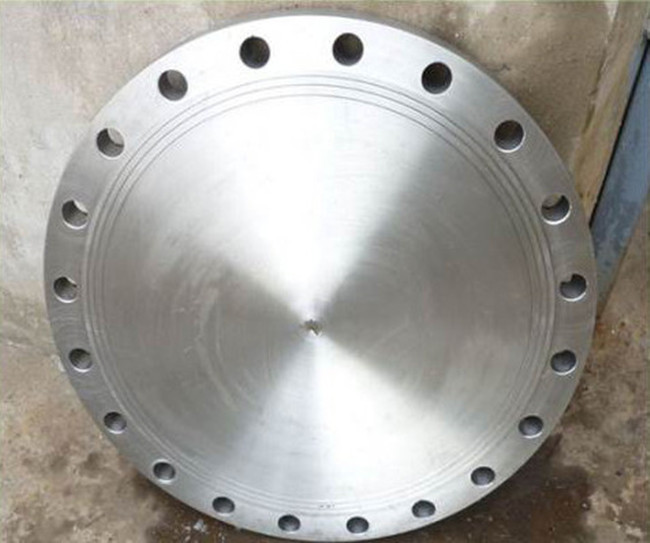

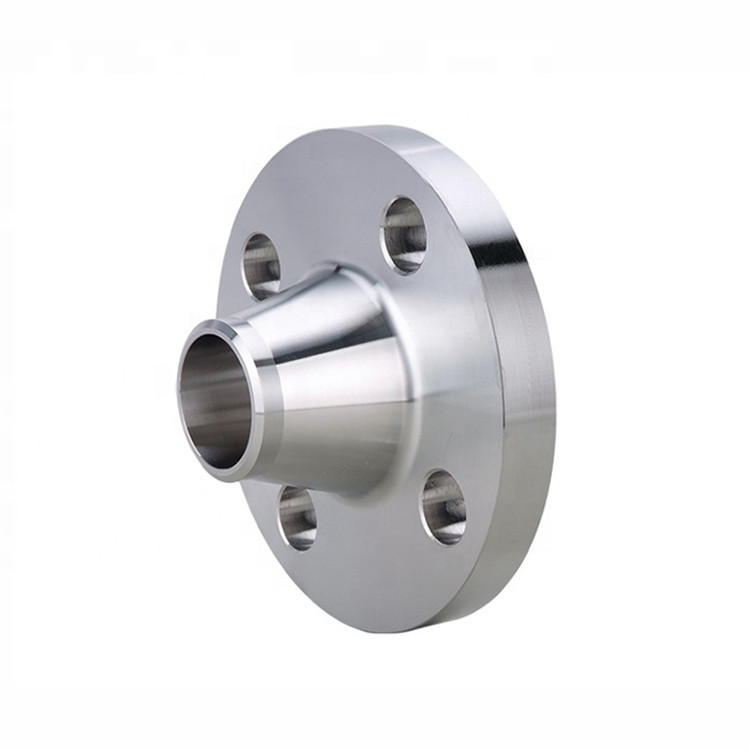

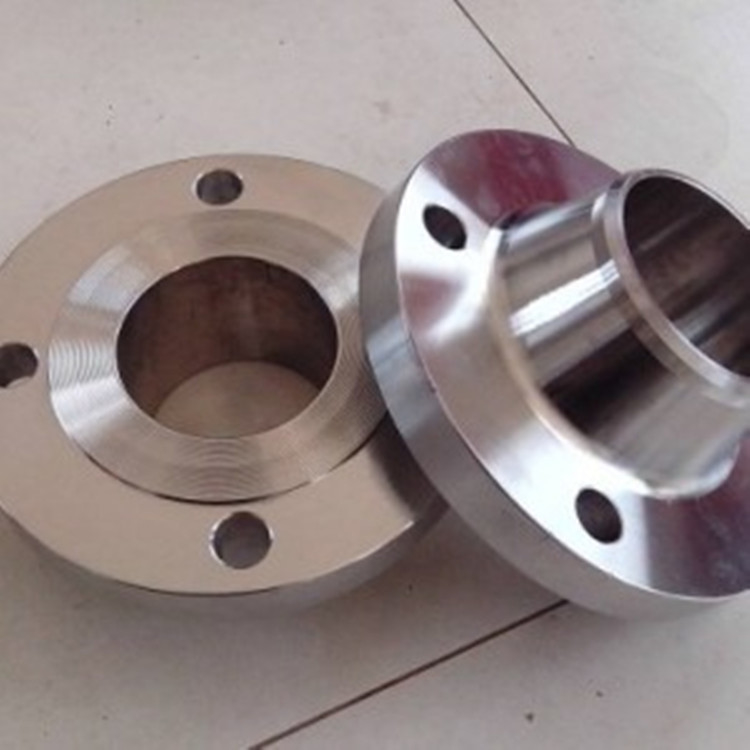

Products Picture:

High Standard Din Carbon Steel Pipe Flanges For Pressure Gauge 0 Products Pictures:　

High Standard Din Carbon Steel Pipe Flanges For Pressure Gauge 1

Packaging&Transportation :

Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
　1. Are you trading company or manufacturer?
　　We are manufacturer .
　2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
　　Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
